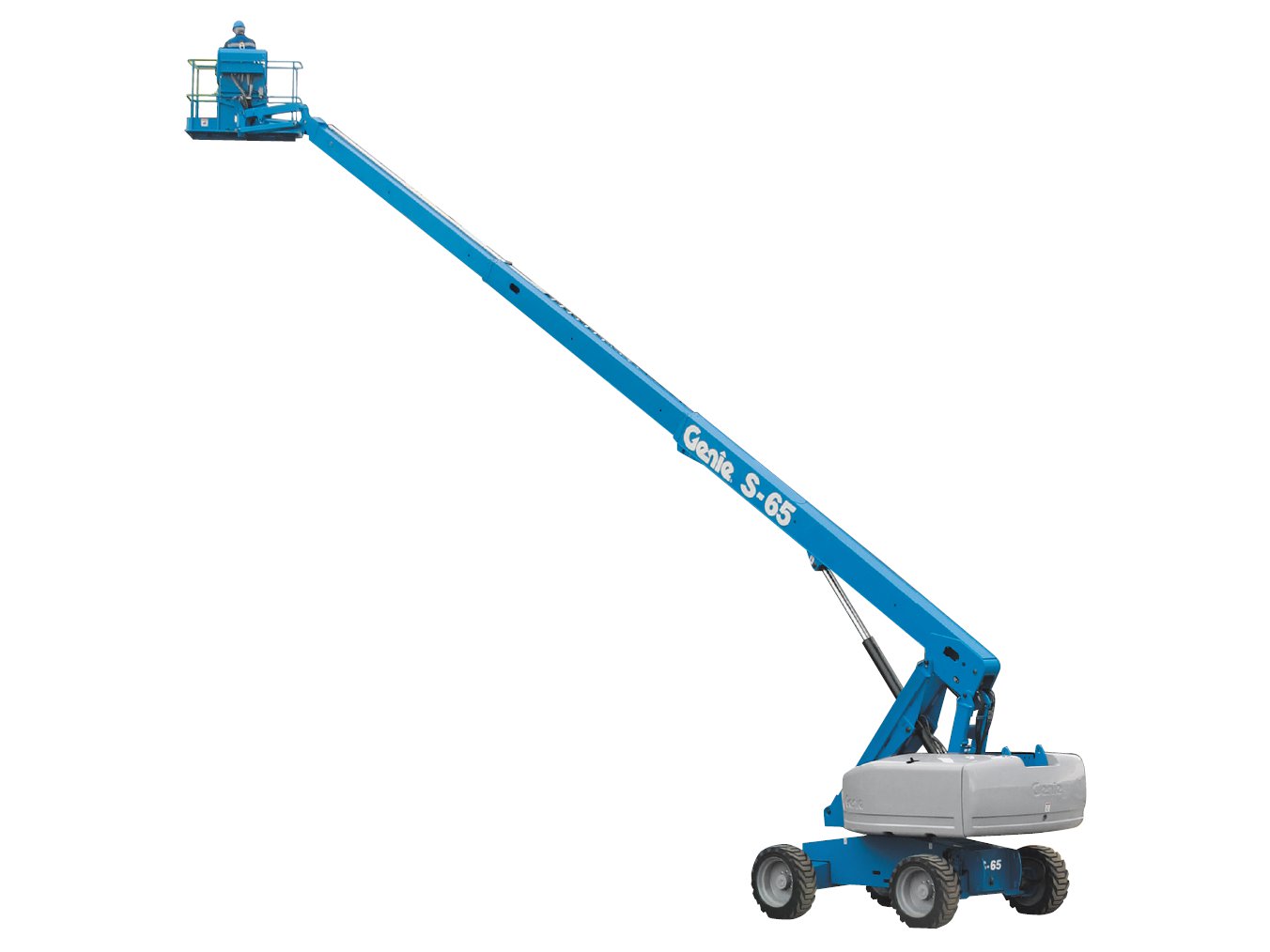

Genie S65
Below you will find the main specs for this piece of equipment. For a full specification please click the button below and if you require further information please contact your local CPH branch by visiting our contact page.
Platform Height – 19.8m – 65Ft
Working Height – 21.8m – 71Ft
Horizontal Reach – 17.10m – 56Ft
Height Stowed – 2.72m – 8Ft 11Inch
Length Stowed – 9.5m – 31Ft 2 Inches
Width – 2.49m – 8Ft 2 Inches
Lift Capacity – 227Kgs – 500Lbs
Fuel Tank Capacity – 132Ltrs – 35Gls
Weight – 10,102Kgs – 22,270Lbs
